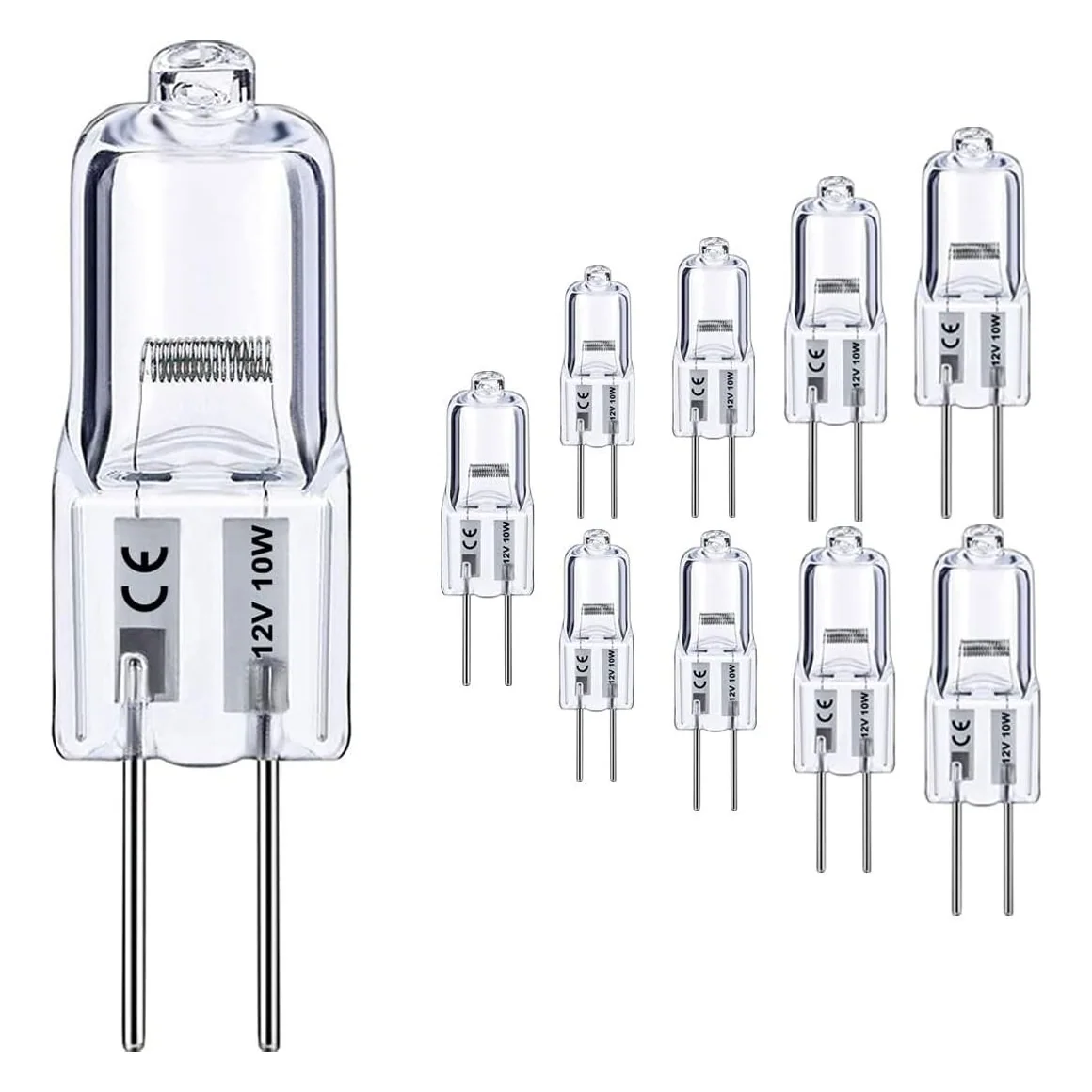

Vinaco G4 Halogen Bulb, 10W 12V Bi-Pin
G4 T3 · Bi-Pin & Mini Halogen Bulbs
Selected: 10-pack
- G4Base
- 12VVoltage
- 10WWattage
The smallest bulb we list: a 12 volt capsule just over an inch long. It lights cabinet strips, display cases and small desk lamps.
- G4 bi-pin base
- 10W at 12V
- Dimmable
- Packs of 10 or 20
Checkout, payment and delivery happen with our retail partner. Price from our update of 1 October 2026. How we update prices
About the G4 Halogen Bulb, 10W 12V Bi-Pin
- G4 bi-pin base Two fine pins 4 mm apart. The capsule is 0.38 in wide and 1.18 in long.
- 10W at 12V 150 lumens of 2800K warm white from a low-voltage supply.
- Dimmable It dims from 10 to 100 percent.

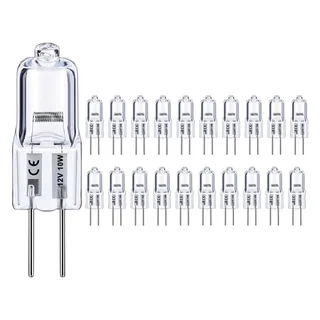

- Packs of 10 or 20 The 20-pack brings the price of each bulb down.
Specifications
- Base
- G4: two straight pins, 4 mm apart
- Shape
- T3 capsule
- Voltage
- 12V
- Wattage
- 10W
- Light output
- 150 lm at 10W
- Color of white
- 2800K
- Dimmable
- Yes
- Rated life, maker's figure
- 3,000 hours
- Size
- 0.38 × 1.18 in
- Technology
- Halogen
- Pack sizes
- 10, 20
- Fixtures
- Under-Cabinet
G4 base
Two straight pins, 4 mm apart. It runs on 12 volts, through a transformer. See all eight bases
Where it fits
Low-voltage cabinet lights often hold a row of G4 capsules behind a strip of glass. Each one is small, and a 10 watt bulb is the common size. You pull the old capsule straight out and press the new one in. The light is the warm white of halogen and comes on at once. Twenty in a pack suits a display case or a long run under cabinets.
Check before you buy
- The fixture or its transformer is marked 12V.
- The old bulb has two fine pins 4 mm apart.
- The fixture is rated for 10W or more per socket.
| Wattage and pack | Bulbs | Price | Per bulb | |
|---|---|---|---|---|
| 10-pack | 10 | $12.13 | $1.21 | Restock on Amazon |
| 20-pack | 20 | $20.68 | $1.03 | Restock on Amazon |
Pick another one if
Be sure of the voltage. This bulb is for 12 volts and needs a transformer. On 120 volts it fails in an instant. The pins are thin and bend if you force them. If your fixture names 20 watts, a 10 watt bulb works but gives half the light.
Same aisle
Vinaco Bi-Pin & Mini Halogen Bulbs
5 products, from $11.45. Compare them side by side in one table.
More from Vinaco
What buyers say about the G4 Halogen Bulb, 10W 12V Bi-Pin
4.6 out of 5 from 747 ratings. Reviews word for word, with the critical ones left in.
"Reliable G4 Halogen Bulbs for Various Uses"
I purchased these G4 halogen bulbs for my project, and they've been great so far. The 10-pack is a good value, and the bulbs are bright and provide consistent light. The 12V, 10W rating is perfect for my needs, and installation was straightforward. I've used a few already with no issues, and I'm happy with the overall performance. The only reason I didn't give a full 5 stars is that they do run a bit hotter than expected, but that's typical with halogen bulbs. Still, I would definitely recommend them!
They fit!!!
Direct replacement for my RV ceiling puck lights. Would prefer to transfer over to LED bulbs but haven't been able to locate ones that are this small.So if you have puck lights that have halogen bulbs, these might be exactly what you need.
Good bulbs- buy with confidence.
Good per unit price and works great- just like an OEM brand. Same brightness, same fit into the appliance. Would give 5 stars if a smaller quantity were available.
Good find
A very convenient and economical way to keep these items on hand. Work great an last.
G4 Halogen Bulb, 10W 12V Bi-Pin: questions
Can I use a G4 on 120V?
No. It is a 12V bulb and needs a transformer. On 120V it burns out at once.
Does it work on AC and DC?
The maker lists it for 12V AC or DC, which covers most cabinet lighting transformers.
What is the difference between the two packs?
Only the count. Both hold the same 10W bulb, ten or twenty to a pack.
